Accessories Included
3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA Batteries
-
Accessories Optional
Optional: ST-65M / PN-ST55L Stand, SP-RM3a Speakers. Other Accessories: All SDM Option Cards, Raspberry Pi Compute Module 4 with optional NEC Interface Board, Human Sensor (PN-KTRC3)
-
Active Screen Area
56.24 x 31.63 in. / 1428.48 x 803. 52 mm
-
Additional Features
AMX Support, Automated Email Alert Function, CEC Support through HDMI, Crestron Connected V2 Support with XiO Cloud, IEEE802.1x Wired Network Authentication, SSH, NaViSet Secure, Signed FW upon Install, Admin Login, IP Address Filtering, MAC Address Filte
-
Aspect Ratio
-
Audio Out
-
Backlight Type
-
Bezel Width Bottom Inches
-
Bezel Width Bottom Millimeters
-
Bezel Width Left Inches
-
Bezel Width Left Millimeters
-
Bezel Width Right Inches
-
Bezel Width Right Millimeters
-
Bezel Width Top Inches
-
Bezel Width Top Millimeters
-
Brightness Typical
-
Colour Temperature Max
-
Colour Temperature Min
-
Connectivity Speakers
Integrated 10W x 2, Optional through SP-RM3a
-
Contrast Ratio
-
Cooling Method
Integrated and programmable; linked to cooling fans
-
Depth Without Stand Inches
-
Depth Without Stand Millimeters
-
Depth With Stand Inches
-
Depth With Stand Millimeters
-
Dimensions (PJ or LFD/DT w/stand)
57.26 x 34.28 x 15.74 in. / 1454.5 x 870.7 x 399.8 mm
-
Dimensions Shipping
63.78 x 37.40 x 7.28 in. / 1620.0 x 950.0 x 185.0 mm
-
Dimming Capability
-
Displayable Colours
-
Display Technology
-
Environmental Compliance ENERGYSTAR
-
External Control Output
LAN (100Mbit, carries RS-232C and IR)
-
Gamma Typical
Native, 2.2, 2.4, S Gamma, DICOM SIM., HDR-ST2084 (PQ), HDR-HYBRID LOG, PROGRAMABLE1, PROGRAMABLE2, PROGRAMABLE3
-
Height Without Stand Inches
-
Height Without Stand Millimeters
-
Input Signal Video
-
Input Terminals Analog
-
Input Terminals Audio
-

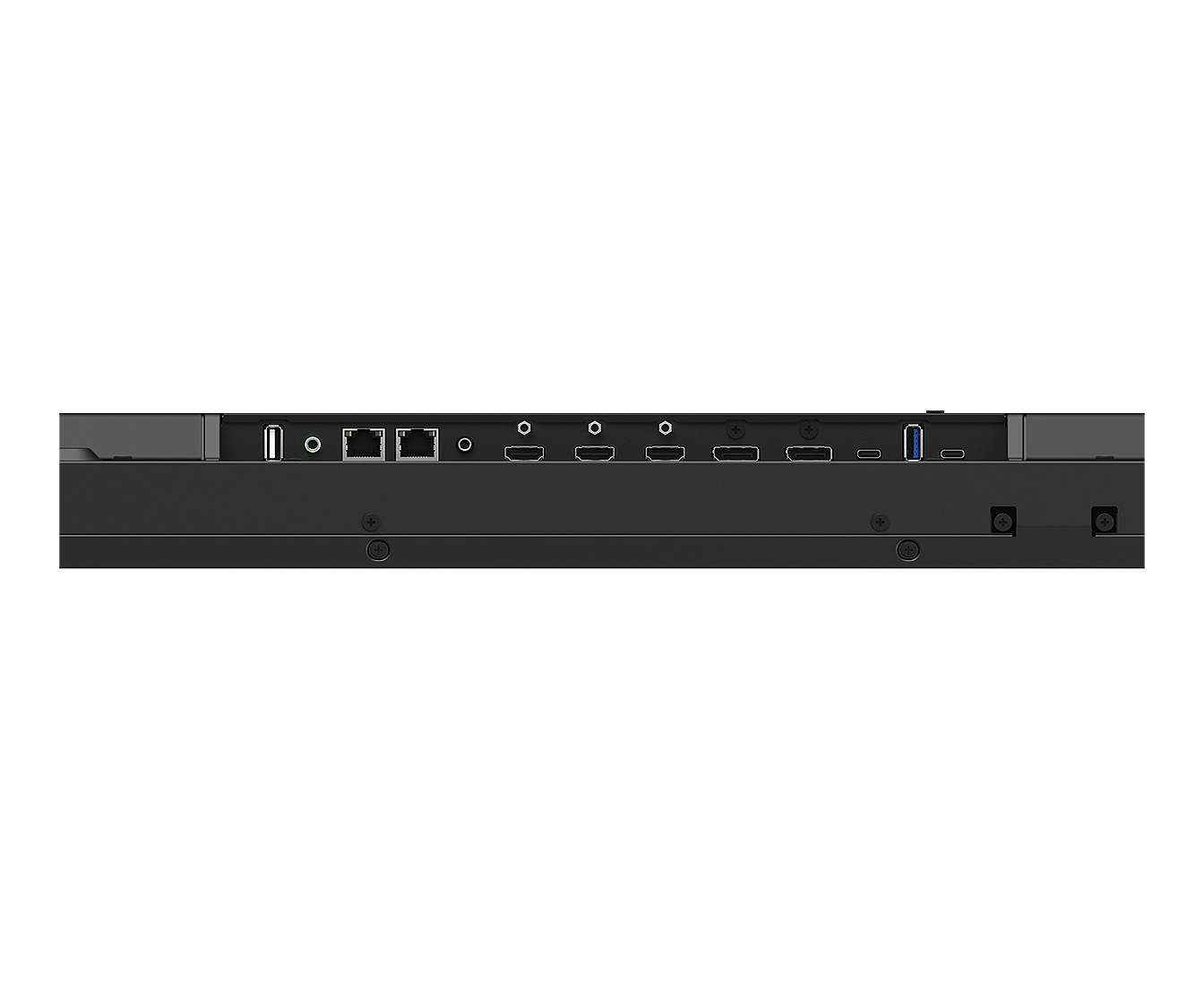

Input Terminals Digital
HDMI 2.0 x2, DP 1.4 x1, USB-C (Upstream with DP-Alt Mode and 65W Power Delivery)
-
Input Terminals External Control
LAN (100Mbit), 3.5mm Mini Jack IR Remote, RS-232C
-
Input Terminals Input Data
USB-C (Upstream with DP-Alt Mode and 65W Power Delivery), USB-A 2.0 (Service), USB-A 3.2 (Downstream), USB-C (Downstream)
-
Input Terminal Video
HDMI Input: HDMI IN1 (HDMI), HDMI IN2 (HDMI). DisplayPort Input: DisplayPort IN (DisplayPort), USB Type-C (DP alternate mode)
-
Native Resolution Height
-
Native Resolution Width
-
Operating Altitude
-
Operating Humidity
-
Operating Temperature
0° - 40° C / 32° - 104° F
-
Orientation
Landscape and Portrait (CCW Rotation)
-
Output Terminals Audio
-
Output Terminals Digital
HDMI x1, DisplayPort x1 (Carries DP or DP-Alt signals via USB-C)
-
Output Terminals External Control
LAN (100Mbit, carries RS-232C and IR)
-
Panel Technology
-
PC Signal Compatibility
-
Pixel Pitch
-
Power Consumption Normal Standby
-
Power Consumption Input Current
4.6A - 1.9A @ 100V - 240V
-
Power Consumption Max
-
Power Consumption Network Standby
-
Power Consumption Power Savings Mode
-
Power Consumption Typical
-
Power Requirements
4.6A - 1.9A @ 100V - 240V
-
Power Supply
-
Refresh Rate
-
Response Time Gray To Gray
-
Screen Size
-
Series
-
Ships With
3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA Batteries
-
Storage Altitude
-
Storage Humidity
-
Storage Temperature
32°F to 104°F / 0°C to 40°C
-
Supported Resolutions
Recommended: 3840 x 2160 (60Hz) Max: 4096 x 2160 @60
-
Synchronization Range Horizontal
HDMI: 15.0kHz - 135.0kHz DisplayPort: 22.0kHz - 134.0kHz
-
Synchronization Range Vertical
HDMI: 23.0Hz - 76.0Hz DisplayPort: 23.0Hz - 76.0Hz
-
VESA Hole Configuration Specifications
-
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
-
Warranty
3 years Advanced Replacement
-
Weight
-
Weight Shipping
-
Weight Without Stand
-
Weight Without Stand Kilograms
-
Weight Without Stand Pounds
-
Width Without Stand Inches
-
Width Without Stand Millimeters
