165" 0.9mm UHD LD-D Series Durable COB Premium dvLED Kit
LD-D091-U
Size
165"
165" diagonal screen size
4K UHD (3840x2160) resolution with a refresh rate of ≥ 3840 Hz
Kit includes everything needed for an LED installation including the LED modules, LED controller, mounting structure, overframe trim kit as well as spare parts and a pixel card removal tool
Advanced Multi-Colour Flip-Chip COB technology delivers stunning, colour-rich visuals with high brightness and exceptional contrast while improving durability
High-efficiency design reduces power consumption and heat output compared to traditional SMD LED displays

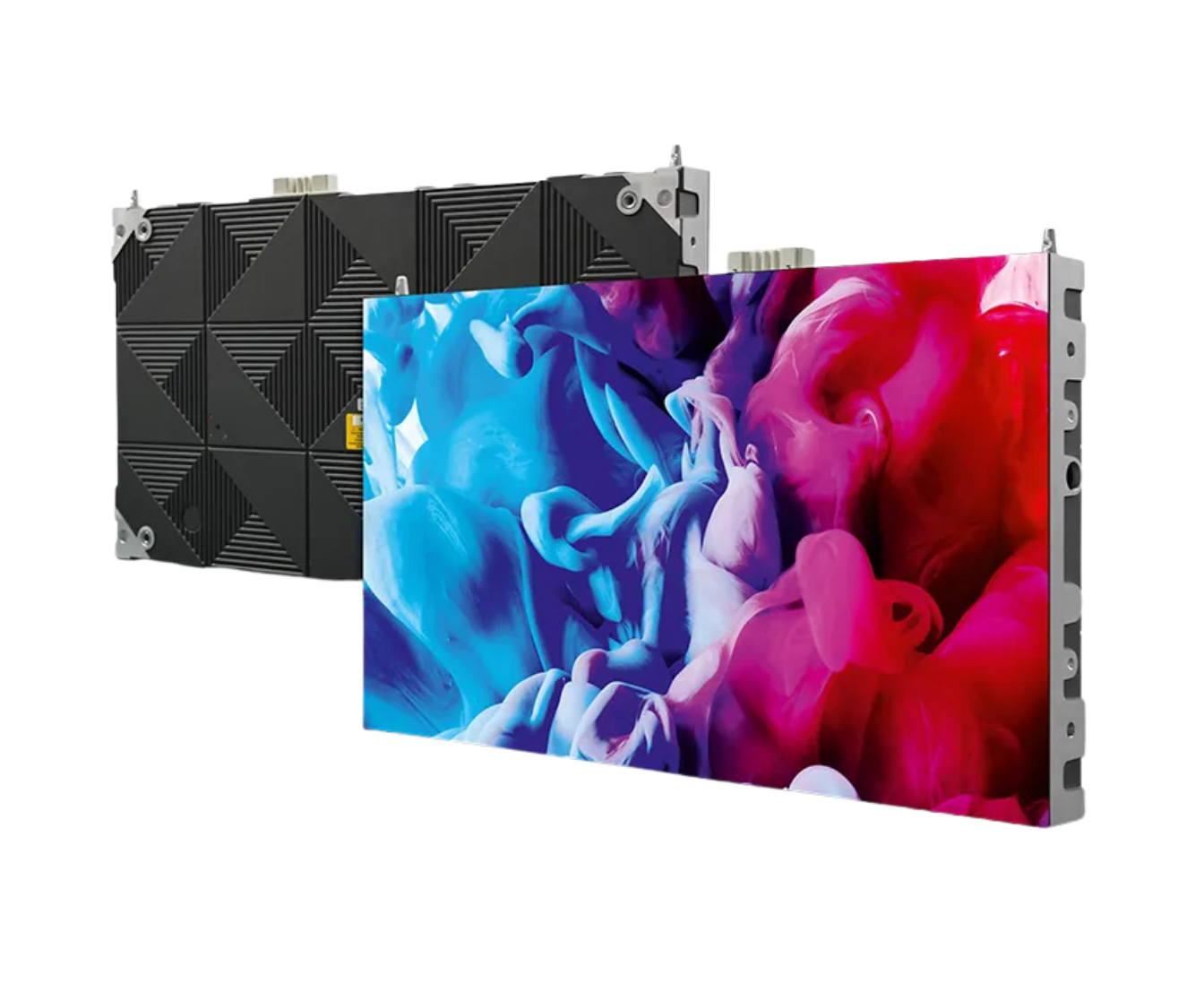

Front-serviceable cabinets support installation and maintenance in tight or hard-to-access spaces
Hot-swappable pixel cards enable quick servicing without powering down the display
The new LD-D dvLED kits are available in a selection of Full HD “F” and UHD “U” options.
The D Series dvLED is engineered with the latest Flip-Chip COB technology to deliver stunning, colour-rich visuals in a highly durable design built for high-traffic environments. With pixel pitch options of 0.9mm, 1.2mm, and 1.5mm, it ensures bold, consistent image performance across a wide range of applications.
Designed to perform in demanding settings, its robust construction enhances protection against everyday wear, while the front-serviceable design allows for easy access and simplified maintenance when needed.
Active Screen Area
143.4 x 81 in. / 3648 x 2052 mm
Aspect Ratio
16:9
Brightness Maximum
880cd/m2
Brightness Typical
800cd/m2
Certifications
CCC CE ETL FCC Class A RoHS
Colour Processing
Up to 16 bit
Colour Temperature Max
9500
Colour Temperature Min
3000
Colour Temperature Typical
6500
Contrast Ratio
20000:1
Depth Without Stand Inches
3.2
Depth Without Stand Millimeters
82
Dimming Capability
256 levels
Displayable Colours
281 trillion
Environment
Indoor
External Control
1 x GenLock; 1 x LAN
Frame Rate
60
Gamma Max
4.0
Gamma Min
1.0
Gamma Typical
2.8
Height Without Stand Inches
85.6
Height Without Stand Millimeters
2173.5
Input Terminals Digital
1 x 3G SDI; 1 x DVI-D; 1 x HDMI
Input Terminals External Control
RS232 / USB
IP Level
IP40
LED Driving Method EN
1/36 dynamic scan
Pixel Configuration
Multi-Colour Flip Chip COB
Lifetime
100 000 hours
Screen Resolution
640 x 360
Native Resolution Height
2160
Native Resolution Width
3840
Operating Humidity
10% to 80%
Operating Temperature
-20° to 40°C / -4° to 104°F
Orientation
Landscape
Panel Technology
Direct View LED
Pixel Configuration
Flip Chip COB
Pixel Pitch
0.95mm
Power Consumption Max
2160W
Power Consumption Min
504W
Power Consumption Typical
1008W
Refresh Rate
Up to 3840 Hz
Screen Size
165 in.
Servicability
Front Service
Ships With
1x LED Controller LED Modules (36 Cabinets, 288 Pixel Cards) Overframe Kit (6x6) Pixel Card Removal Tool Power Bar Spare Parts Kit Wall Mount (6x6)
